Textile Wooden Parts

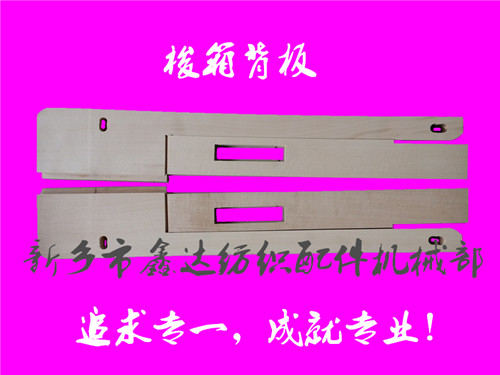

Loom shuttle box,backboard (3303*3304)
time:2022-07-07 10:42:05 click:7890
keywords:Back of shuttle box,Lift back,Loom,Loom fittings,Textile wood parts
description:
We provide all kinds of shuttle loom backofshuttlebox (3303*3304) and fly back, textile machine,wood and 1511-Q6*Q7 and Q3*Q41515 type loom 3312*Q7 (476mm in length),GA615 2106*Q7 (textile machine shuttle box,fly back) material:wood products and clothes or something or birch,wood fly back from the bottom wire 3313 shuttledepth +3mm. The distance between the bottom box bottom plate 3308 (9+0.8) mm,or in accordance with the process requirements, according to different specifications of the shuttle check.
Backofshuttlebox Q3 or 3303 K14 or 3307 and the box bottom plate into 86 integrant degrees,tolerance of 0.1mm, Q4 or 3304 tolerance tongue back +0.1mm. Textile wood processing enterprises,loom parts suppliers_Xinda Textile parts.
